50000H Life IP66 IK09 50w Street Light

Name: 50000H Life IP66 IK09 50w Street Light
Brand: Diecastingman/ OEM
Price: 1 USD

China 50000H Life IP66 IK09 50w Street Light wholesale

Brand Name : Diecastingman/ OEM

Model Number : SL-11B-50

Certification : CE, RoHs, EMC,LVD, GS, SAA,UL

Place of Origin : Zhejiang(China mainland)

MOQ : 1pc

Price : negotiation

Payment Terms : L/C, T/T

Supply Ability : 20000pcs/month

Delivery Time : 25-45days after deposit received

Packaging Details : neutral packing

Wattage : 60W

Color Temperature : 2700-6500K

Input Voltage : 90-305V

Protection Level : IP65

Operation Temperature : -40°C ~ 50°C

Material : Aluminium

Lamp Luminous Flux(lm) : >7500lm

Housing Color : Black,White,Silver

CRI (Ra>) : >70

Working Lifetime(Hour) : >50000H

Efficiency : >90%

Power Factor : >0.90

Contact Now

IP 66 Waterproof New Led Street Light Fixtures 30W

Product Specification

Input Voltage: 100-240V 50/60Hz

Max Watt:30W

Power Factor:＞0.95

Beam Angle:150*70°

Material: Die-casting aluminium ADC12

IP Rating:IP 65

Luminous Flux:3300Lm

LED color:2700-7000K (choice)

Color rendering index:Ra＞70

Working Ambient Temperature:﹣35°～50°

Quality Guarantee:5years

with exposed :0.5M H05RN-F 3G1.0m㎡ rubble cable

Driver:INVENTRONICS EUC-035S

Chipsset Brand: 3030

LED quantity:48PCS

Code	ZHSL-11-30	ZHSL-11-40	ZHSL-11-50	ZHSL-11-120
Power	40W Max	40W Max	60W Max	120W Max
Color Temperature	3000-6500K	3000-6500K	3000-6500K	3000-6500K
Efficiency	＞120LM/W	＞120LM/W	＞120LM/W	＞120LM/W
Voltage	AC100-240V	AC100-240V	AC100-240V	AC100-240V
Power Factor	PF≥0.95	PF≥0.95	PF≥0.95	PF≥0.95
CRI(Ra)	Ra≥70	Ra≥70	Ra≥70	Ra≥70
Ambient Temperature	-40-50℃	-40-50℃	-40-50℃	-40-50℃
Ambient Humidity	20%-90%RH	20%-90%RH	20%-90%RH	20%-90%RH
Lifetime(hrs)	50000	50000	50000	50000
IP	IP66	IP66	IP66	IP66
Installation Pipe Diameter	Φ50/60mm	Φ50/60mm	Φ50/60mm	Φ60mm
Installation Height	6-8 m	6-8m	8-10m	10-12m
Net Weight	2.5kg	2.5kg	6.0kg	9.0kg
Gross Weight	2.7kg	2.7kg	7.0kg	9.2kg
Packing Size(mm)	600270155	600270155	680290170	795370210

Product Size

	L(mm)	W(mm)	H(mm)
ZHSL-11-30	519	220	117
ZHSL-11-40	519	220	117
ZHSL-11-50	590	256	131
ZHSL-11-120	738	320	164

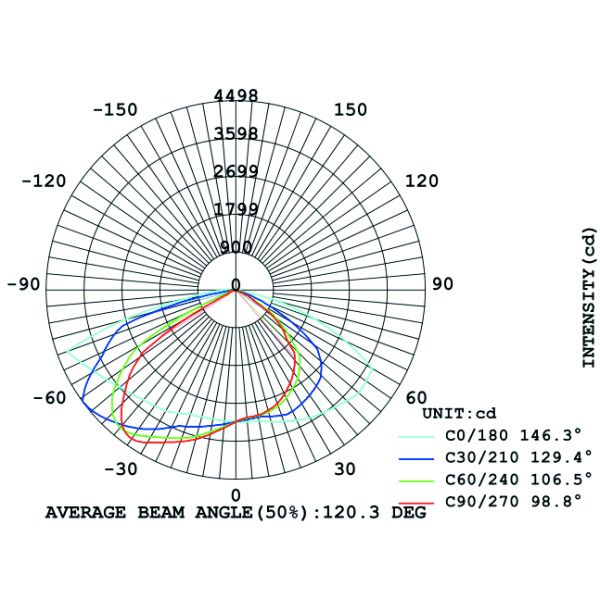

Photometric Data

50000H Life IP66 IK09 50w Street Light
